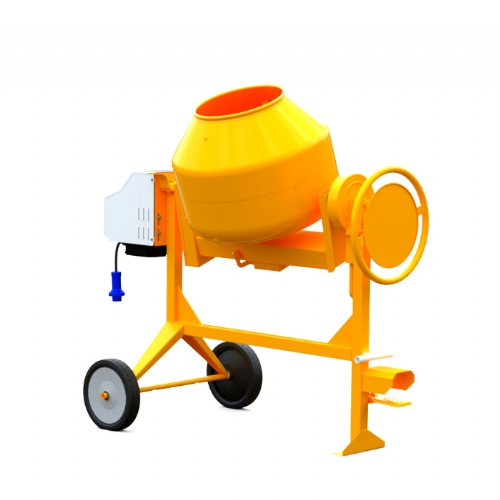

Electric concrete mixer 260 lt - C 320 SBL
Concrete mixers | Silent transmission line
Technical characteristics
Line of concrete mixers designed to solve the problems of noise of traditional concrete mixers.
The Omaer Silent Line stands out from the others on the market for:
1) Gearmotor with direct transmission, which allows a 10% saving of energy used;
2) Rotation and overturning reducer designed internally, to adapt to the different types of concrete mixers;
3) Cataphoresis of the overturning reducer, which gives it the black color and has an anti-oxidant and anti-rust function, maintaining the functional characteristics of the reducer unchanged over time.
Total capacity of tank | lt. 305 |
Capacity of mixing (about) | lt. 260 |
Power electric motor | HP 2 - Kw 1,5 |
weight with electric motor (about) | Kg. 165 |
Lenght (about) | mm. 1550 |
Height (with reversed tank) (about) | mm. 1505 |
Width (about) | mm. 920 |
Noise (sound pressure level) | Lp. 72 dB/A |
Vibration | a (w) 2,30 m/s² |
Data and sizes are not binding and the producer reserves itself to modify the machines without giving notice.
